CABINETS · BUYING GUIDE

Best Paint Sprayer for Kitchen Cabinets

Updated

The best paint sprayers for kitchen cabinets: handheld HVLP, turbine HVLP and airless sprayers from Wagner, HomeRight, Fuji Spray and Graco, compared by finish, power, capacity and weight.

We may earn a commission when you buy through links on this page.

Our picks at a glance

ProductAwardScore
Wagner FLEXiO 3500 Sprayer Plastic housing and plastic cup (Lowe's listing)
Best overall 7.6 Check price
HomeRight Super Finish Max HVLP Paint Sprayer Brass fluid tips, nozzle and needle (per manual)
Best budget 7.4 Check price
Fuji Spray Semi-PRO 2™ System Metal turbine case; stainless steel nozzle and needle; aluminum cup
Best premium 8.4 Check price
Graco Magnum X5 Electric TrueAirless Sprayer Hardened stainless steel piston pump and pump rod, stainless steel sleeve; stand frame
Best for large kitchens 7.4 Check price
Graco TrueCoat 360 Dual Speed TrueAirless Paint Sprayer Handheld; wetted parts in stainless steel, brass, carbide, nylon and other plastics
Best handheld airless 6.8 Check price
How the editorial score works

The score rates documented features and practical tradeoffs on a 10-point scale, using the weighted criteria below. An 8 means strong support with one clear limit; a 9 means particularly complete support with minor limits. It is our editorial judgment from manufacturer information, not a hands-on test or a customer rating.

  • Fine-finish control35%
  • Paint handling & capacity25%
  • Setup & cleanup20%
  • Build & warranty20%

The order of the picks also reflects who each product suits best, so it is not decided by the score alone. More on our method

  1. 01 · Best overall

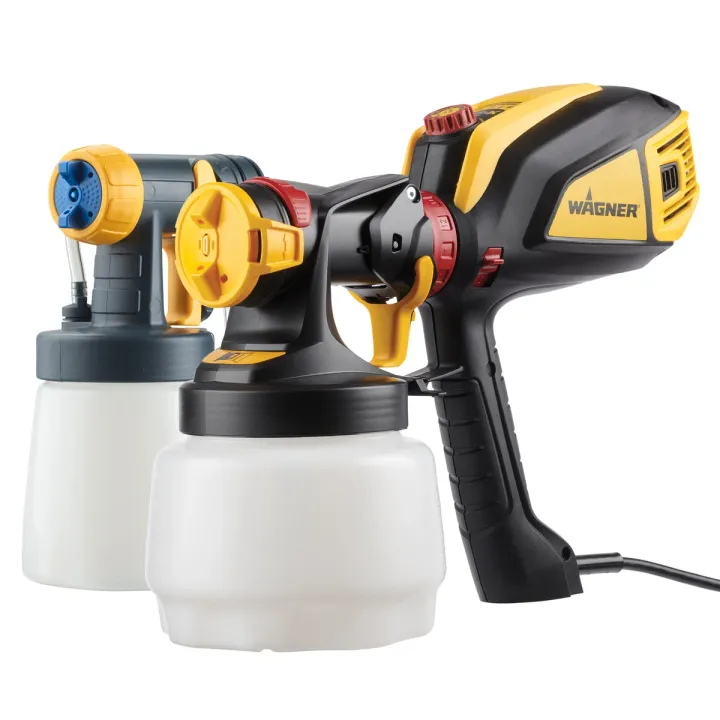

    Wagner FLEXiO 3500 Sprayer

    Wagner · 2419306

    Wagner FLEXiO 3500 Sprayer

    7.6/ 10
    Editorial score
    Finish
    8.0
    Paint
    7.0
    Setup
    8.0
    Build
    7.0
    Why this score?
    Fine-finish control · 8.0
    Detail Finish nozzle for cabinets; adjustable flow, pattern, width and turbine speed.
    Paint handling & capacity · 7.0
    Sprays unthinned latex from the can; 48 oz cup means refills on a full kitchen.
    Setup & cleanup · 8.0
    Handheld, no hose; cup and nozzle come apart to rinse; heavier in hand.
    Build & warranty · 7.0
    Plastic housing and cup; 1-year limited warranty, plus 6 months on registration.

    Based on documented features and practical tradeoffs, not a hands-on test. Assessment: October 7, 2026. How the editorial score works

    Manufacturer information

    Best forDIYers painting cabinets, doors and furniture who want an easy handheld HVLP

    A handheld HVLP sprayer with an X-Boost turbine that Wagner says sprays unthinned latex paints, primers and stains straight from the can. It comes with two nozzles: iSpray for walls and a Detail Finish nozzle for cabinets, trim and furniture.

    Strengths

    • Detail Finish nozzle is designed for cabinets and trim
    • Adjustable flow, pattern, spray width and variable turbine speed

    Weaknesses

    • Handheld unit carries the turbine and cup, so it is heavier in the hand than a gun on a hose
    • Cup holds less than a bucket-fed airless, so expect refills on a full kitchen

    Dimensions, material and details

    Dimensions
    18 x 7 x 13.75 in (Lowe's listing)
    Construction
    Plastic housing and plastic cup (Lowe's listing)
    Type
    Handheld HVLP (turbine)
    Power
    Electric, 120 V; variable-speed X-Boost turbine
    Cup / hose
    48 oz cup (Lowe's listing); no hose
    Tips / nozzles
    iSpray nozzle and Detail Finish nozzle; 4-12 in fan width (Lowe's listing)
    Weight
    8.66 lb (Lowe's listing; may be shipping weight)
    Warranty
    1-year limited (Lowe's listing); Wagner adds 6 months when you register

    Details checked against the wagnerspraytech.com product page.

    Check price at Amazon
  2. 02 · Best budget

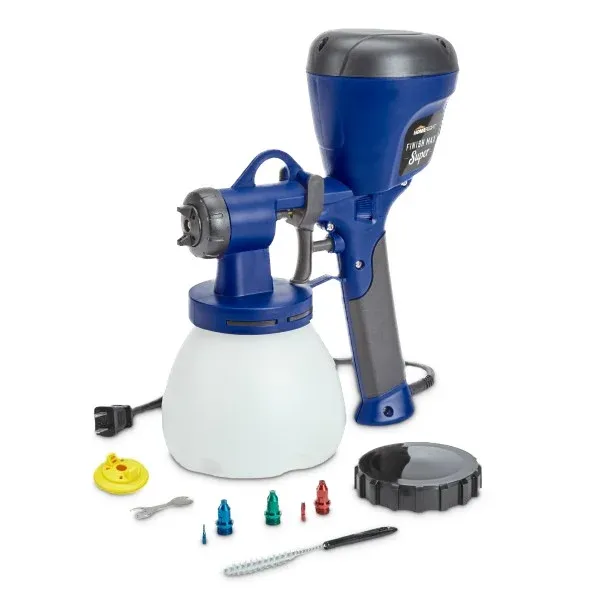

    HomeRight Super Finish Max HVLP Paint Sprayer

    HomeRight · C800971

    HomeRight Super Finish Max HVLP Paint Sprayer

    7.4/ 10
    Editorial score
    Finish
    7.5
    Paint
    6.5
    Setup
    8.0
    Build
    7.5
    Why this score?
    Fine-finish control · 7.5
    Three tips (1.5, 2.0, 4.0 mm), two air caps; 1-12 in adjustable pattern.
    Paint handling & capacity · 6.5
    Handles many coatings with 'less thinning', so thick paints may still need thinning.
    Setup & cleanup · 8.0
    Compact handheld with 40 oz container and no hose.
    Build & warranty · 7.5
    Brass tips, nozzle and needle; 2-year warranty; weight and size unpublished.

    Based on documented features and practical tradeoffs, not a hands-on test. Assessment: October 7, 2026. How the editorial score works

    Manufacturer information

    Best forFirst-time sprayers refinishing a few cabinet doors or furniture

    A compact handheld HVLP sprayer with 450 watts of power and three brass tips that HomeRight says handles chalk-type paint, latex, enamels, primers, polyurethane and stain with less thinning. The pattern adjusts from 1 to 12 inches wide.

    Strengths

    • Three tip sizes (1.5, 2.0 and 4.0 mm) and two air caps included
    • 2-year warranty

    Weaknesses

    • Thicker paints may still need some thinning (HomeRight says 'less thinning', not none)
    • Weight and dimensions are not published by HomeRight

    Dimensions, material and details

    Dimensions
    Not stated by HomeRight; spray pattern 1-12 in wide
    Construction
    Brass fluid tips, nozzle and needle (per manual)
    Type
    Handheld HVLP (turbine)
    Power
    450 W, corded electric
    Cup / hose
    40 oz container; no hose
    Tips / nozzles
    1.5 mm, 2.0 mm (installed) and 4.0 mm tips
    Weight
    Not stated by HomeRight
    Warranty
    2 years

    Details checked against the homeright.com product page.

    Check price at Amazon
  3. 03 · Best premium

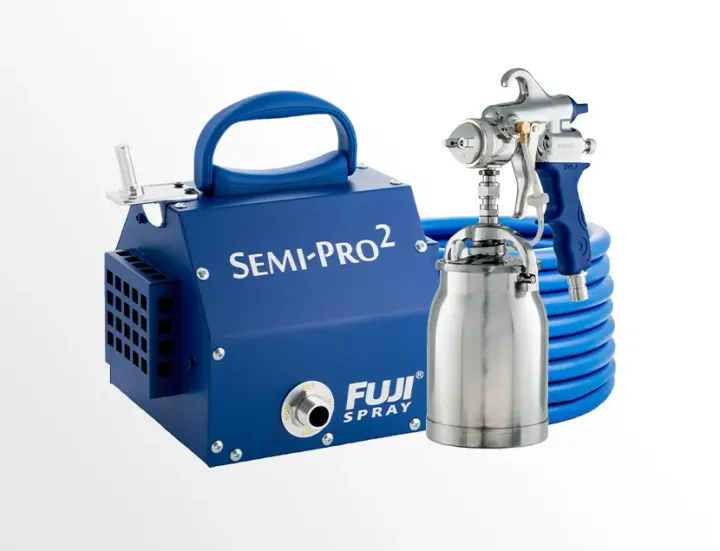

    Fuji Spray Semi-PRO 2™ System

    Fuji Spray · 2202

    Fuji Spray Semi-PRO 2™ System

    8.4/ 10
    Editorial score
    Finish
    9.0
    Paint
    8.5
    Setup
    6.5
    Build
    9.0
    Why this score?
    Fine-finish control · 9.0
    Non-bleed gun; air caps 0.8-2.0 mm, though only 1.3 mm installed.
    Paint handling & capacity · 8.5
    Caps cover thin to thick coatings; 1 qt pressurized cup on 25 ft hose.
    Setup & cleanup · 6.5
    Turbine, hose and gun setup takes more space; 25.2 lb package.
    Build & warranty · 9.0
    Metal turbine case, stainless nozzle and needle, 1400 W; 2-year parts and labor.

    Based on documented features and practical tradeoffs, not a hands-on test. Assessment: October 7, 2026. How the editorial score works

    Manufacturer information

    Best forSerious DIYers who want a fine, furniture-style finish on cabinets

    A two-stage turbine HVLP system with a separate non-bleed spray gun on a 25 ft hose, made by a Canadian maker for workshop and home use. Fuji lists cabinets among its intended jobs and offers air caps from 0.8 to 2.0 mm for thin to thick coatings.

    Strengths

    • Non-bleed M-Model gun with a 1-quart aluminum pressurized cup on a 25 ft hose
    • 1400 W two-stage turbine with a metal case; 2-year parts and labor warranty

    Weaknesses

    • Only the 1.3 mm air cap comes installed; other sizes are sold as separate sets
    • A turbine, hose and gun setup takes more space and setup than a handheld

    Dimensions, material and details

    Dimensions
    Not stated by Fuji; package 16.5 in deep x 15.5 in high (ToolsToday listing)
    Construction
    Metal turbine case; stainless steel nozzle and needle; aluminum cup
    Type
    Turbine HVLP system (2-stage)
    Power
    1400 W motor; 5.0 PSI turbine
    Cup / hose
    1 qt bottom-feed pressurized cup; 25 ft Hi-Flex hose with air control valve
    Tips / nozzles
    1.3 mm air cap set installed; 0.8-2.0 mm sets available
    Weight
    25.2 lb (ToolsToday listing)
    Warranty
    2 years parts and labor

    Details checked against the fujispraysystems.com product page.

    Check price at Amazon
  4. 04 · Best for large kitchens

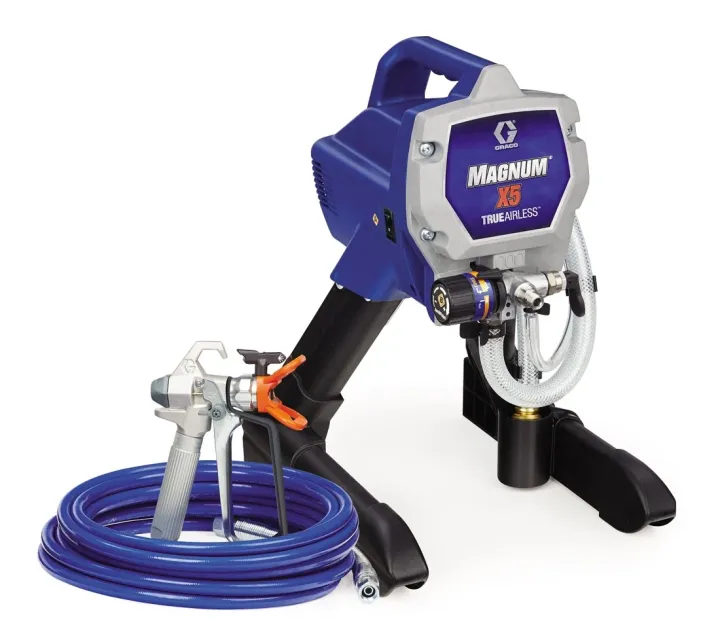

    Graco Magnum X5 Electric TrueAirless Sprayer

    Graco · 262800

    Graco Magnum X5 Electric TrueAirless Sprayer

    7.4/ 10
    Editorial score
    Finish
    6.5
    Paint
    9.0
    Setup
    6.5
    Build
    8.0
    Why this score?
    Fine-finish control · 6.5
    Airless; included 515 tip is wall-size, smaller 0.009-0.015 in tips sold separately.
    Paint handling & capacity · 9.0
    Sprays unthinned paint straight from 1 or 5 gallon containers, no refills.
    Setup & cleanup · 6.5
    Pump and 25 ft hose must be primed and flushed; Power Flush fitting helps.
    Build & warranty · 8.0
    Hardened stainless steel piston pump and rod; no warranty listed in the file.

    Based on documented features and practical tradeoffs, not a hands-on test. Assessment: October 7, 2026. How the editorial score works

    Manufacturer information

    Best forBig kitchens plus other house projects, sprayed straight from the bucket

    A stand-mounted airless sprayer with a hardened stainless steel piston pump that draws unthinned paint directly from a 1 or 5 gallon container. Graco rates it for DIY homeowners painting interior and exterior projects.

    Strengths

    • Sprays unthinned paint from 1 or 5 gallon containers, so no cup refills
    • Accepts tips from 0.009 to 0.015 in, including smaller sizes suited to trim and cabinets

    Weaknesses

    • Included 515 tip is a wall-size tip; smaller tips are sold separately
    • Pump and 25 ft hose must be primed and flushed, which is more cleanup for small batches

    Dimensions, material and details

    Dimensions
    14.5 x 12.4 x 17.9 in (L x W x H)
    Construction
    Hardened stainless steel piston pump and pump rod, stainless steel sleeve; stand frame
    Type
    Airless (electric piston pump)
    Power
    0.5 HP (373 W), 120 V, 9.0 A; up to 3000 psi, 0.27 GPM
    Cup / hose
    Suction tube from 1 or 5 gal container; 1/4 in x 25 ft hose (up to 75 ft)
    Tips / nozzles
    Compatible 0.009, 0.011, 0.013, 0.015 in; TrueAirless 515 tip included
    Weight
    17 lb

    Details checked against the graco.com product page.

    Check price at Amazon
  5. 05 · Best handheld airless

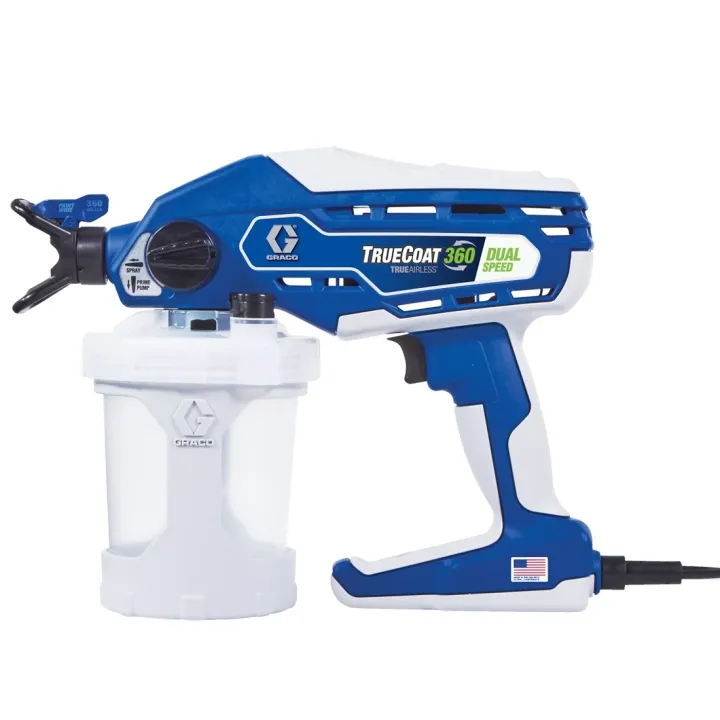

    Graco TrueCoat 360 Dual Speed TrueAirless Paint Sprayer

    Graco · 26D281

    Graco TrueCoat 360 Dual Speed TrueAirless Paint Sprayer

    6.8/ 10
    Editorial score
    Finish
    6.5
    Paint
    6.0
    Setup
    8.5
    Build
    6.5
    Why this score?
    Fine-finish control · 6.5
    Airless handheld with 0.015 in max tip and 2000 psi; narrow tips included.
    Paint handling & capacity · 6.0
    32 oz FlexLiner bags mean frequent refills on a full kitchen.
    Setup & cleanup · 8.5
    3.5 lb, no hose or bucket; disposable bags ease cleanup and spray at any angle.
    Build & warranty · 6.5
    Mixed stainless, brass and plastic wetted parts; 12-month warranty.

    Based on documented features and practical tradeoffs, not a hands-on test. Assessment: October 7, 2026. How the editorial score works

    Manufacturer information

    Best forQuick touch-ups and single-room cabinet jobs without a hose

    A handheld corded airless sprayer that uses disposable 32 oz FlexLiner bags so it can spray in any direction. It comes with narrow and wide reversible tips for paint and for stain.

    Strengths

    • Light at 3.5 lb with no hose or bucket to manage
    • FlexLiner bags allow spraying at any angle and make cleanup easier

    Weaknesses

    • Small 32 oz liners mean frequent refills on a full kitchen
    • Rated at 2000 psi with a 0.015 in maximum tip, below the stand-mounted X5

    Dimensions, material and details

    Dimensions
    12.5 x 5.25 x 9.75 in (L x W x H)
    Construction
    Handheld; wetted parts in stainless steel, brass, carbide, nylon and other plastics
    Type
    Handheld airless (corded)
    Power
    120 V, 2.5 A; up to 2000 psi; two speeds
    Cup / hose
    32 oz FlexLiner paint bags (4 included); no hose
    Tips / nozzles
    Narrow and wide reversible paint tips plus narrow and wide stain tips; max tip 0.015 in
    Weight
    3.5 lb
    Warranty
    12 months (Graco standard warranty in owner's manual)

    Details checked against the graco.com product page.

    Check price at Amazon

COMPARE

Side-by-side comparison

Select a column heading to sort.
Wagner FLEXiO 3500 Sprayer DIYers painting cabinets, doors and furniture who want an easy handheld HVLP18 x 7 x 13.75 in (Lowe's listing)Plastic housing and plastic cup (Lowe's listing)Handheld HVLP (turbine)
HomeRight Super Finish Max HVLP Paint Sprayer First-time sprayers refinishing a few cabinet doors or furnitureNot stated by HomeRight; spray pattern 1-12 in wideBrass fluid tips, nozzle and needle (per manual)Handheld HVLP (turbine)
Fuji Spray Semi-PRO 2™ System Serious DIYers who want a fine, furniture-style finish on cabinetsNot stated by Fuji; package 16.5 in deep x 15.5 in high (ToolsToday listing)Metal turbine case; stainless steel nozzle and needle; aluminum cupTurbine HVLP system (2-stage)
Graco Magnum X5 Electric TrueAirless Sprayer Big kitchens plus other house projects, sprayed straight from the bucket14.5 x 12.4 x 17.9 in (L x W x H)Hardened stainless steel piston pump and pump rod, stainless steel sleeve; stand frameAirless (electric piston pump)
Graco TrueCoat 360 Dual Speed TrueAirless Paint Sprayer Quick touch-ups and single-room cabinet jobs without a hose12.5 x 5.25 x 9.75 in (L x W x H)Handheld; wetted parts in stainless steel, brass, carbide, nylon and other plasticsHandheld airless (corded)

How we chose

We compared HVLP and airless sprayers from established brands using the makers’ product pages, manuals and spec sheets: sprayer type, power, pressure, cup or hose setup, tip and nozzle options, weight and warranty. Where a maker left out a basic spec, we took it from a major US retailer listing for the exact model and say so.

What to look for in a paint sprayer for cabinets

Choose HVLP or airless. HVLP sprayers use low-pressure air and are easier to control on doors, drawers and trim. Airless sprayers use high fluid pressure and cover large areas quickly, which helps when you are painting a whole kitchen or more.

Look for a fine-finish nozzle or small tip. Cabinet faces show every flaw, so check that the sprayer has a detail nozzle, a small air cap or accepts small airless tips. Large tips are meant for walls and lay down more paint than a cabinet door needs.

Check whether it handles your paint. Some sprayers can spray thick latex or enamel straight from the can, while others need the paint thinned. Compare the sprayer’s guidance with the cabinet paint label before you buy.

Think about cup size versus hose. Handheld sprayers with a cup are quick to set up and clean but need frequent refills. Hose-fed systems hold more paint and keep the gun light, but take longer to prime and flush.

Plan for cleanup and overspray. Every sprayer needs a full cleanup after each session. Set up a spray area away from the kitchen, mask nearby surfaces, and wear a suitable respirator and eye protection.

Frequently asked questions

Is HVLP or airless better for kitchen cabinets?

HVLP sprayers like the Wagner FLEXiO 3500, HomeRight Super Finish Max and Fuji Semi-PRO 2 use a large volume of low-pressure air, which suits detailed work like cabinet doors. Airless sprayers like the Graco Magnum X5 and TrueCoat 360 push paint through a small tip at high pressure (up to 3000 psi on the X5 and 2000 psi on the TrueCoat 360), so they cover large areas quickly. Many DIYers pick HVLP for a few doors and airless when a whole kitchen or more is involved.

Do I need to thin paint before spraying cabinets?

It depends on the sprayer and the paint. Wagner says the FLEXiO 3500 sprays unthinned latex paints and primers, Graco says the Magnum X5 sprays unthinned paints, and HomeRight says the Super Finish Max needs less thinning than before. Always check the paint label, since many cabinet enamels say not to thin.

What spray tip size should I use for cabinets?

For airless sprayers, smaller tips give a narrower, finer spray for doors and trim. The Graco Magnum X5 accepts tips from 0.009 to 0.015 in and ships with a 515 tip, and the TrueCoat 360 includes narrow and wide paint tips with a 0.015 in maximum. HVLP sprayers use nozzles or air caps instead, such as the FLEXiO 3500's Detail Finish nozzle or the Fuji's 1.3 mm air cap.

How much cleanup does a paint sprayer need?

Every sprayer needs to be cleaned right after use so paint does not dry inside. Handheld models like the FLEXiO 3500 and HomeRight Super Finish Max are rinsed by taking apart the cup and nozzle, and the TrueCoat 360 uses disposable FlexLiner bags. The Graco Magnum X5 has a Power Flush fitting that connects to a garden hose to flush the pump and hose.

What is the best sprayer for kitchen cabinets?

The Wagner FLEXiO 3500 is our best overall: a handheld HVLP sprayer that Wagner says sprays unthinned latex straight from the can, with a Detail Finish nozzle designed for cabinets and trim. For a full kitchen plus other projects, the Graco Magnum X5 airless sprays unthinned paint from the bucket, and the Fuji Spray Semi-PRO 2 is the premium pick for a fine, furniture-style finish.

What is the best cheap paint sprayer for kitchen cabinets?

The HomeRight Super Finish Max is our budget pick. It is a compact handheld HVLP with 450 watts of power, three tip sizes (1.5, 2.0 and 4.0 mm) and a 2-year warranty. HomeRight says it handles latex, enamels and primers with less thinning, but thicker paints may still need some thinning.
